“Best Electric Bike for 2022”

Outlet Carbon 1

$1,599.00

$2,799.00

● Showroom Bike
● Small to none damage
● 2 year Warranty
● Style is not chooseable (*see FAQ)
● Not returnable (*see FAQ)

Model

Carbon 1 · 250W · Carbon Belt

Size

M · Fit for 5’7’’~6’1’’ Inseam 31’’

L · Fit for 5’11’’~6’5’’ Inseam 33’’

Your order quantity has reached our stock limit

Ships within 7 business days from L.A. warehouse.

Current e-bike orders:
US version only delivers to Contiguous US.

*Terms and conditions apply

$1,599.00$2,799.00

or as low as $123/month

Buy

Detail

Specs

Reviews Reviews

Accessories

Feel the New Shape of Freedom

33lbs

Net Weight

60+miles

per charge

4levels

pedal assist

2.5hrs

Full Charge

Full
Carbon Fiber

Magnetic
Torque Sensor

Portable
Samsung Battery

TEKTRO Hydraulic
Disc Brakes

Brushless
Hub Motor

Integrated
lighting system

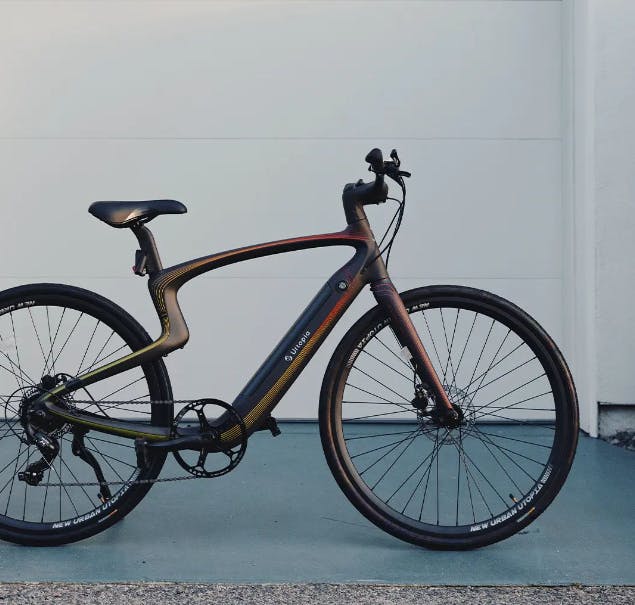

Carbon 1

Urban thrills obtained with elegance

●Gates carbon belt drive
●Cleaner, quieter and smoother
● Relative maintenance free
● Last forever (rated 19,000miles )

Carbon1 is great for commuters because you’ll never get a grease mark on your nice slacks. If you enjoy quiet rides in the morning while enjoying nature and the birds’ singing, you may want to opt for a belt drive.

Specification

Size Guide

	Medium(cm)	Large(cm)
Recomm. rider height	170~185(5’7’’~6’1’’)	180~195(5’11’’~6’5’’)
A. Standover height	80	84
B. Seat height (to ground)	92~98	96～102
C. Handlebar grips height	101	102
D. Handlebar width	69	69
E. Crank length	17	17
F. Overall length	181	185
G. Wheel diameter	69	69
H. Seat height (to seat tube)	19~25	19-25
I. Handlebar diameter (outer)	2.22	2.22

	Medium(cm)	Large(cm)
1. Seat tube length	46	50
2. Seat angle	73°	73°
3. Head tube length	17	18
4. Head angle	69.5°	70°
5. Wheelbase	108	112
6. Top tube length (effective)	58	61
7. Chain stay length (rear-center)	45	45
8. Bottom bracket drop	6	6
9. Fork length (axle to crown)	40	40
10. Fork rake/offset	4.5	4.5
11. Stack	58	59
12. Reach	40	43
13. Front-center	64.5	67
14. Headset height	10	10
15. Handlebar stem length	8	8

	Medium (cm)	Large(cm)
Recomm. rider height	170~185 (5’7’’~6’1’’)	180~195 (5’11’’~6’5’’)
A. Standover height	80	84
B. Seat height (to ground)	92~98	96~102
C. Handlebar grips height	101	102
D. Handlebar width	69	69
E. Crank length	17	17
F. Overall length	181	185
G. Wheel diameter	69	69
H. Seat height (to seat tube)	19~25	19~25
I. Handlebar diameter (outer)	2.22	2.22

	Medium(cm)	Large(cm)
1. Seat tube length	46	50
2. Seat angle	73°	73°
3. Head tube length	17	18
4. Head angle	69.5°	70°
5. Wheelbase	108	112
6. Top tube length (effective)	58	61
7. Chain stay length (rear-center)	45	45
8. Bottom bracket drop	6	6
9. Fork length (axle to crown)	40	40
10. Fork offset/rake	4.5	4.5
11. Stack	58	59
12. Reach	40	43
13. Front-center	64.5	67
14. Headset height	10	10
15. Handlebar stem length	8	8

Specs

Smart

Smartbar features

Voice control, fingerprint unlock, LED dot-matrix display

Connectivity

eSIM with 4G, Bluetooth & WiFi

IoT sensors

Accelerometer, gyroscope, torque

App

iOS & Android

Power

Motor

Carbon 1: 36 V 250 W (rated), 35 N⋅m

Speed modes

Pedal, Eco, Comfort, Sport, Turbo

Top speed (assisted)

Carbon 1: 20mph

Range

25~60 miles

Removable battery

9.8 Ah 352.8 Wh Samsung Li-ion, 2.5-hr quick charge

General

Weight

Carbon 1: 33 lbs.

Payload Capacity

Max. 240 lbs.

Sizes

Small, Medium, Large (see Size Guide)

Body material

Carbon fiber (frame, fork, handlebar, seatpost)

Brakes

Front & rear dual-piston hydraulic disc

Tires

Kenda Kwest 700x35C (35 mm / 1.4”) (30~45 mm compatible)

Integrated lights

StVZO headlight; Advanced Rear Early-indication System (ARES)

Wheels

700C (ISO 622 mm BSD), inner rim 19 mm

Gearing

Carbon 1: Gates Carbon Drive™ CDN™ belt (up to 19,000 miles)

What’s in the Box

Urtopia Carbon one

Front Wheel, Frame, Seatpost, saddle, Pedals

Removable battery

Battery, Charger, Battery key
