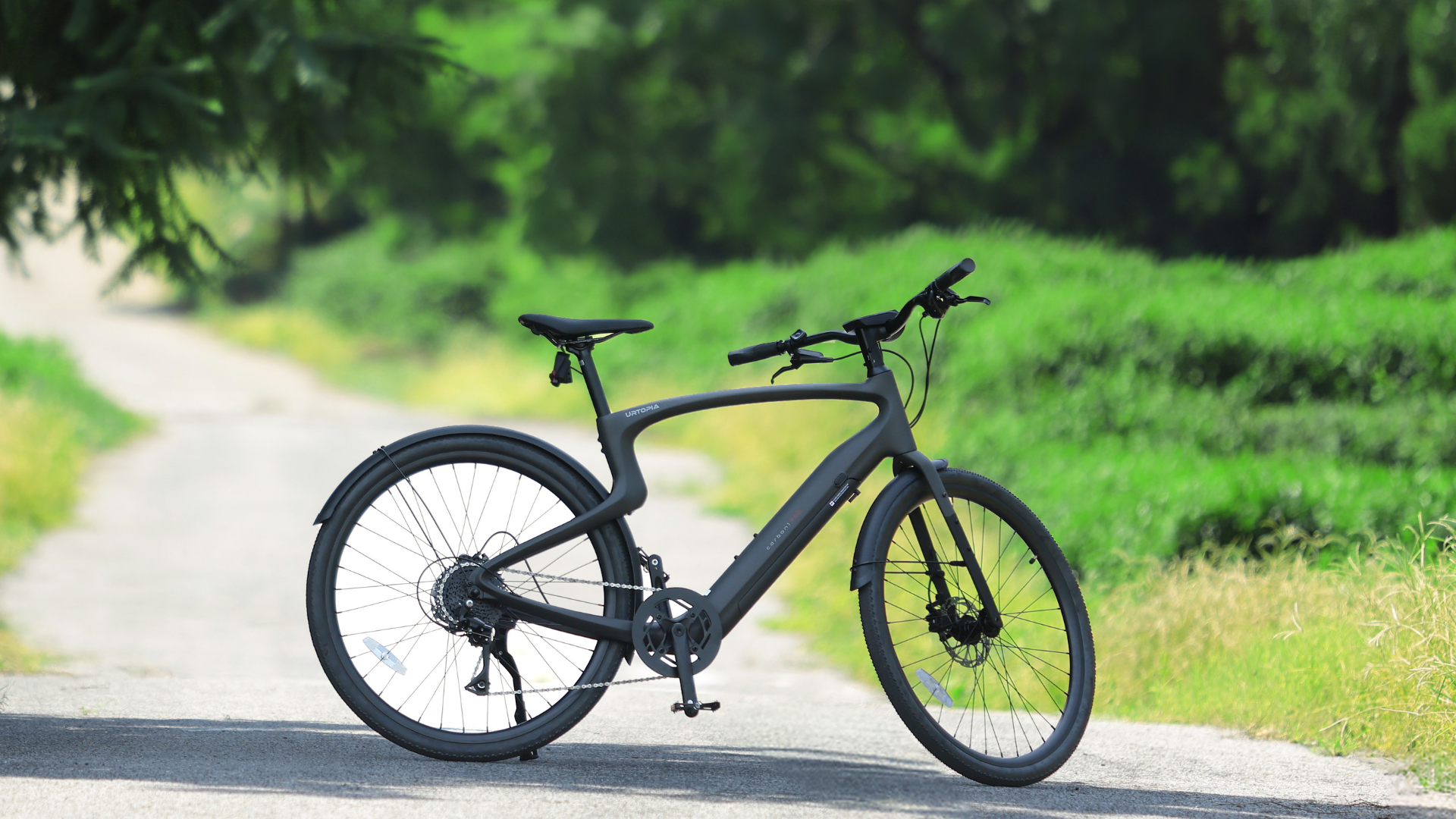

Electric Bike Battery Placement Explained: Pros, Cons & Best Options for Riders

Electric bike battery placement explained is one of the most overlooked issues of e-bike riding, but it determines the performance, handling, and life of the electric bike. The impact of the battery placement on the balance, safety, design, and even general ride experience is considerable.

Battery position assists you in getting the most suitable e-bikes and simplifies the process of comparing options for adults to select an e-bike that meets their requirements. This guide simplifies every placement choice, covers the advantages and disadvantages, and outlines why the in-frame batteries are the best in the new market of e-bikes.

Why Battery Placement Matters for Electric Bikes

One of the most important engineering decisions made in the design of e-bikes is battery placement. The place would dictate the stability of the bike, the appearance, and how useful it would be to own in the long term. A lot of new riders compare motors, frames, or features, but ignore the position of batteries, yet it has a direct impact on the performance.

Weight Distribution and Handling

The bike itself will have its batteries attached, and most of them will not exceed 2.5 to 4.5 kilograms. Such mass may lead to instability of the bike when it is not of the right height or when it is not fitted in the correct position, hence making it problematic in turns or mountain climbing. A balanced bike has a low and centrally balanced centre of gravity, which helps it to maneuver on smooth roads as well as in rough terrain. A front-heavy design has an impact on steering sensitivity, and a rear-heavy design can lead to a decrease in stability at high speed. For this reason, most commuter bikes would like to have the battery placed centrally.

Bike Aesthetics and Frame Design

The placement of batteries determines the degree of integration or streamlining of the bike. An external battery is more overt, and it may even protrude outward from the frame. Although this may make the maintenance easier, it disrupts the elegant lines that many of the riders would like to enjoy. Other types of in-frame (in-tube) designs are becoming increasingly popular in modern e-bikes to form a long, smooth silhouette that resembles conventional bicycles. This design not only looks refined but also protects the battery from dust, impact, and harsh weather. Most of the electric bikes for adults have concealed batteries to make the bikes look more professional and minimalistic.

Battery Volume

It’s crucial to consider the e-bike battery volume in an eBike design, especially in the context of an integrated body design. In order to keep with aesthetics and streamlined design, the battery cannot protrude from the frame, avoiding becoming a potential point of damage in a collision. Although it may sacrifice some battery capacity, it can provide better protection for the battery within the frame through a reasonable layout and optimized design. Additionally, to prevent the battery from being simply stolen, anti-theft measures should be taken into consideration when making an integrated design without losing the aesthetics.

Maintenance, Safety, and Theft Protection

Accessibility of batteries influences convenience. An external battery is simple to charge indoors, whereas it is simpler to steal the battery. Internal in-frame batteries need an unlocking panel or keys, which provide greater resistance to theft. Safety-wise, the frame protects internal batteries against being hit. The pack is vulnerable to damage when it is attached externally, either in a crash or when it is being roughly handled. And to service, internal wiring is better-kept and cleaner. All these yield to the same conclusion: why electric bike battery placement explained always circles around the same point, which is that proper placement is the only way to achieve long-term performance, safety, and comfort.

The Common Types of eBike Battery Placement

Contemporary electric bikes have four major styles of battery placement. Each option offers advantages depending on riding style, budget, and frame design.

Fully Integrated In-Frame (In-Tube) Batteries

In-frame batteries are installed as part of the frame, providing the bike with a high-end, smooth look. The position ensures that the weight is positioned centrally, enhancing stability and balance. A large number of contemporary commuter and performance bikes are choosing this type of installation because of its long-term protection and clean design.

Advantages:

• Provides a centred and low-weight distribution for improved balance.
• Streamlined, contemporary, and sleek look.
• Exceptional defence against the weather and impacts.
• Harder for thieves to remove.
• Perfect for commuters, long-distance riders, and high-end models.

Disadvantages:

• May increase the cost due to complex design
• Depending on the frame, it may need to be opened or removed with keys.
• The repairs have to be carried out by experts.

Down Tube Mounted Batteries

Down tube batteries are fitted on the exterior in the front part of the frame. They are simple to remove and charge, which is why riders like them because they are easy to operate as a beginner. They provide a fair balance and visibility compared to an integrated system.

Advantages:

• Easy to remove and recharge.
• Less expensive in comparison to built-in designs.
• Compatible with a large number of conventional bike frames.
• Gives a good balance at the centre of the down tube.

Disadvantages:

• Exposed to the elements like rain, dust, and debris.
• More noticeable, lessening the minimalistic appearance of the bike.
• Affect the bike’s maneuverability, especially in turns.

Rear Rack-Mounted Batteries

Rear rack batteries are placed above the back wheel, hence creating space within the frame. It is used in step-through bikes and in folding bikes, where there is practically no frame structure. Nonetheless, the weight can be moved backwards and influence higher speed stability when placed at the rear.

Advantages:

• The body of the frame does not keep the interior.
• Simple to remove for charging or maintenance.
• Folding Bikes / Step-through Bikes with limited space are useful.

Disadvantages:

• Creates a rear-heavy feel.
• Lowers stability during cargo transportation.
• Feels clumsy on high-speed riding.
• Aesthetically less refined.

Seat Tube Mounted Batteries

Seat tube batteries are positioned behind or inside the seat support, positioning the battery close to the centre of the bike. This provides a compromise to rear-mounted designs and yet is accessible. The negative is that there is a lack of space, and this restricts the size of batteries and might also complicate the adjustments to seats.

Advantages:

• Central placement improves balance.
• Adopts with small frames.
• Removal or replacement is quite easy.

Disadvantages:

• Battery capacity is limited because the available space is small.
• It is able to interfere with the seat height.
• Exposed and prone to impact.

Following the comparison of all the placements, the in-frame (in-tube) battery is preferred in most of the modern designs. It provides the most desirable combination of beauty, performance, safety, and longevity. This is why many of the best e-bikes now feature integrated batteries as the default choice.

Best In-Frame Battery Bikes for Commuters and Joy Rides

In-frame battery bikes rule the current market due to their stability, sleek design, and extended functionality. Three of the best models from Urtopia that are aimed at commuters and other casual riders who seek durability, style, and modern engineering are listed below.

Carbon Classic E-Bike

Carbon Classic E-Bike provides an effective commuter bike with a lightweight carbon frame and a battery placed centrally. The geometry also assists it to assume an easy sitting posture when making long rides, and the battery fitted under the body makes it appear clean. The features are made to suit the riders with a high-end feel without compromising efficiency.

Carbon Joy Ultra E-Bike

The fat tire ebike is famous because of its superior motor performance and longer range, which makes it perfect for weekend outings and also in city traffic. The in-frame battery is placed mid-mounted and low, which enhances the handling of the battery, especially when climbing or accelerating at high speeds. Bikers who appreciate power, distance, and a sporty feel usually tend to get attracted to the models under this category.

Carbon Fold Step-Thru E-Bike

This step-thru design electric mini bike is well-suited to riders with limited storage space who also have an inbuilt battery. The in-frame battery construction helps the bike to maintain its balance when folded, avoids the weight from shifting by accident, and maintains the slick appearance. It fits well with an urban commuter, apartment occupants, and a traveller who requires a lot of flexibility but does not want to lose performance.

How to Remove an E-Bike Battery Safely

E-bikes need to be handled carefully when changing the battery to avoid damaging the electrical system and the rider's body.

First of all, it is necessary to turn the bike off in order to prevent a short circuit. Open the battery compartment by using the key or the release mechanism of the manufacturer. In case of integrated designs, the access panel should be opened carefully, and with both hands, the battery should be pulled out. Do not drag or pull wires.

After removing the battery, make sure that it is placed on a flat, dry, shaded surface. It should not be subjected to direct heat or moisture. Provided the bike has external connections, check them out first before replacing the battery to ensure that no dirt or debris is lying in the contact points. The battery must always be kept upright and must not be stored with flammable substances.

Maintenance and Safety Tips for eBike Batteries

In order to achieve maximum battery life, it is recommended to charge the battery on a regular basis instead of letting it run out.

• The majority of Li-ion packs have a longer lifespan with a charge between 20% and 80%.
• Always use the original charger because third-party chargers can cause them to overheat.
• Do not keep the battery in high or low temperatures. Low temperatures lower the performance, whereas high temperatures hasten the degradation of cells.
• Wipe the contact points with a dry cloth in order to ensure good electrical connections.
• Check the battery case to see whether it has been damaged during long journeys or when it falls.
• In case you see swelling, cracks, or abnormal heat, then immediately stop using it and ask a technician.

Correct maintenance will mean that the explanation of electric bike battery placement is not in vain, benefiting not only in performance but also in battery life and the safety of the rider.

Conclusion

Electric bike battery placement plays a crucial role in determining the balance, comfort, and reliability over the long run. An in-frame battery is the best among all the available options in terms of performance, appearance, and safety for commuters and recreational riders. When assessing the best e-bikes or comparing the e-bikes for adults, it is always better to know where the battery is located so that you can select a model that will actually fit your requirements. A properly placed battery enhances the handling, efficiency, and ride quality, and is one of the most intelligent considerations in the selection of an e-bike.

FAQs

Which e-bike battery placement is best?

In-frame batteries are considered the best because they keep weight balanced and well-protected. They also make the bike look cleaner. This type of setup is used to make most modern commuter e-bikes stable and durable.

Are external batteries less safe?

They are also quite safe but more prone to rain, dust, and impact. They are good with proper care, but they do not provide as much protection as the internal batteries do in the long run. In-frame designs are also popular among riders who park in the open.

Do larger batteries affect placement?

Yes, larger batteries should tend to be installed in the frame in order to support them. They occupy a bigger space and enjoy the protection of the natural frame. That is why integrable setups of long-range e-bikes are very common.

Are integrated batteries harder to replace?

They are very protected and can be removed at a slightly longer period. The majority of riders do not replace them often, as their life span is years. With the correct tools or a service shop, it is easy when required.

Does battery placement affect speed?

Battery placement does not affect top speed, but it does influence stability. A centred battery enables the bike to be more comfortable at higher speeds. This enhances the ability to ride or turn on rough roads.
